Slide Scanner Slideview VS200
![](https://bcf.technion.ac.il/wp-content/uploads/2024/06/ima-VS200.jpg)
Introduction
The Olympus Slideview VS200 is a slide scanner for high-throughput digitalization of histology and fluorescence slides for archival, diagnostics, teaching, and research. It supports five imaging modes: Brightfield, Darkfield, Phase Contrast, Polarization, and Fluorescence.
The system’s automatic slide loader can hold standard slides (26 × 76 mm). Trays for even larger slides (up to 102 x 127 mm) are also available and can be purchased if there is a need. High-resolution images are converted into virtual slides through an automated high-speed scanning and tiling process.
Hardware
This is a proprietary system.
Light source and filters
Excelitas X-Cite NOVEM 9-Channel LED Illumination System.

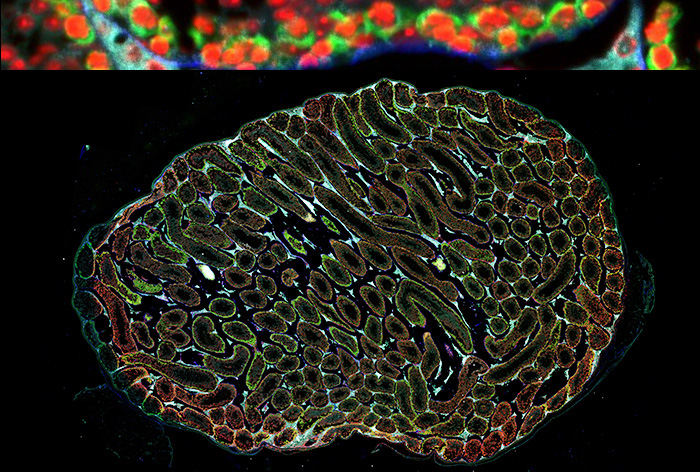

Fluorescence Filters
AHF Analyzenteknich pentaband filter
LED | Excitation filter | Emission filter | Fluorophore family |
---|---|---|---|
386/23 | 352-404 | 416-452 | DAPI |
475/28 | 460-488 | 500-530 | FITC |
550/88 | 542-566 | 593-607* | Cy3, mCherry |
650/13 | 626-644 | 665-705 | Cy5 |
720/30 | 721-749 | 767-849 | Cy7 |
Objectives
Objective | Magnification/NA | Working Distance | Pixel size Brightfield | Pixel size Fluorescence |
---|---|---|---|---|
Universal Plan Extended Super Apochromat | x10/0.4 | 3.1 mm | 548 nm | 548 nm |
Universal Plan Extended Apochromat | x20/0.80 | 0.6 mm | 273.8 nm | 325 nm |
Universal Plan Extended Super Apochromat | x40/0.45 | 0.18 mm | 137 nm | 172.5 nm |
Cameras
Camera | Technology | Application | Resolution | Data depth |
---|---|---|---|---|
iDS VS-264C | CMOS | Brightfield | ||
CAM-ORCA-FusionBT Digital Hamamatsu | sCMOS | Fluorescence | 2304 x 2304 px | 16 bit |
Applications

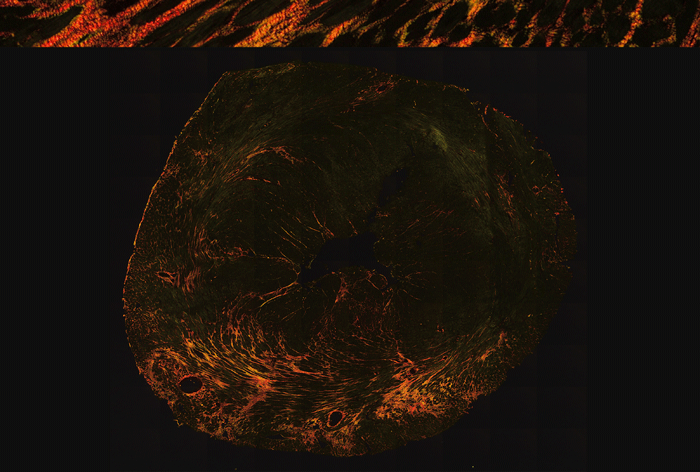

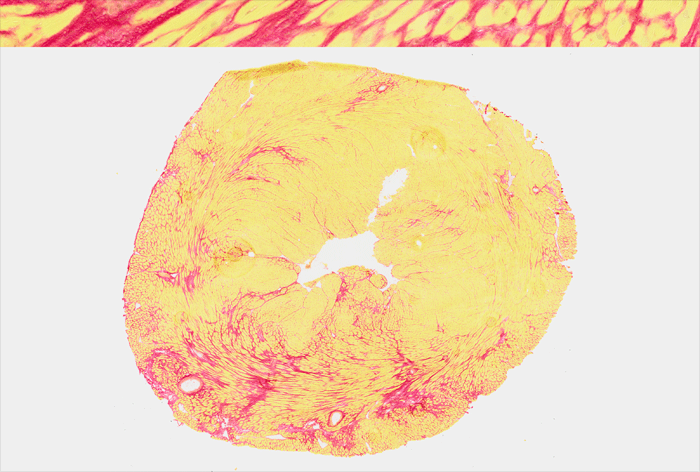

All fixed specimen brightfield/widefield applications including FISH and rare events, polarized light, phase contrast, darkfield. One plane, z-stack or extended focus acquisition.
Acquisition and analysis
Acquisition is performed using the proprietary CellSens software. The .vsi virtual slide image files can be opened by Olyvia, QuPath, FIJI software.
New users
Please contact Maya Holdengreber, tel. 073-378-1107 to coordinate a meeting.
Please do not make a reservation through our online BookItLab system.
