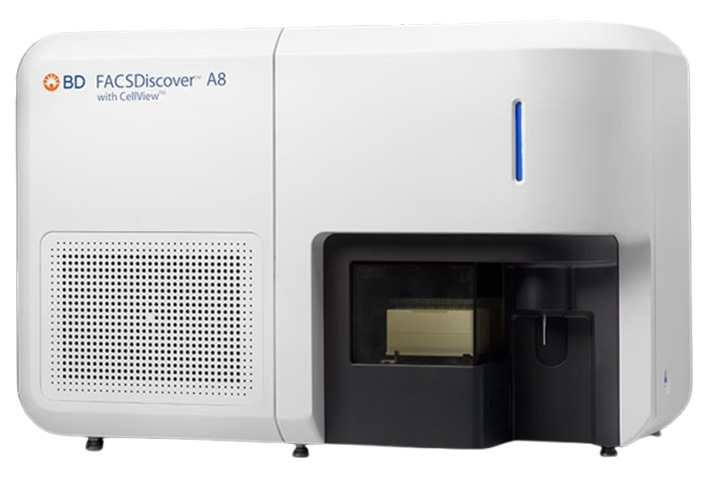

FACSDiscover A8

The BD FACSDiscover A8 shares the same core architecture as our Discover S8 sorter, bringing the power of BD CellView™ Image Technology and BD SpectralFX™ Technology into a dedicated analyzer format. This instrument allows you to visually confirm your populations while gating, ensuring higher data quality and providing deeper morphological insights.

Key Technical Features

• Spectral Capability: Equipped with five lasers (UV-349nm, V-405nm, B-488nm, YG-561nm, R-637nm) and 78 APD detectors, supporting highly flexible panels for high-parameter experiments.
• Real-Time Imaging: Correlate protein expression with spatial and morphological data in real-time, adding a new dimension to your analysis.
• High-Throughput Efficiency: The integrated system supports rapid multi-sample readouts from plates, enabling the high cell numbers required for the statistically significant sampling of rare cell populations.

Detailed filter and configuration information can be found here.

The instrument is available for self-operation by trained users. If you are not yet trained on this system, please contact core personnel to schedule a hands-on session.

Acquisition is performed using BD FACSChorus™ software (FCS 3.2). Following acquisition, CSV and TIFF files should be exported to our bcf-server.

 Please ensure you back up your own data immediately; the unit does not provide long-term data storage.

FCS files are compatible with all major third-party analysis software. We provide several workstations with various software options—please see our Data Analysis page for more details.

Pre-reservation is required and can be managed via BookItLab.

For further information or if you need assistance, please contact Re’ee Yifa.
